  • Maglev: Fast Software Load Balancer 📄
  • by Danielle E. Eisenbud, Cheng Yi, Carlo Contavalli, Cody Smith, Ardas Cilingiroglu, Bin Cheyney, Wentao Shang, Jinnah Dylan Hosein, Roman Kononov, Eric Mann-Hielscher
  • Publication date: 2016
  • Read: May 29, 2018
Maglev: Fast Software Load Balancer book cover
  • Google’s network load balancer
  • distributed system on commodity servers
  • no physical deployment
  • horizontally scalable
  • load distribution via ECMP by network routers
  • consistent hashing and connection tracking
  • serving Google since 2008
  • Downside of hardware LB
    • limited vertical scale
    • only 1+1 redundancy
    • lack of flexibility + programmability
    • expensive to upgrade

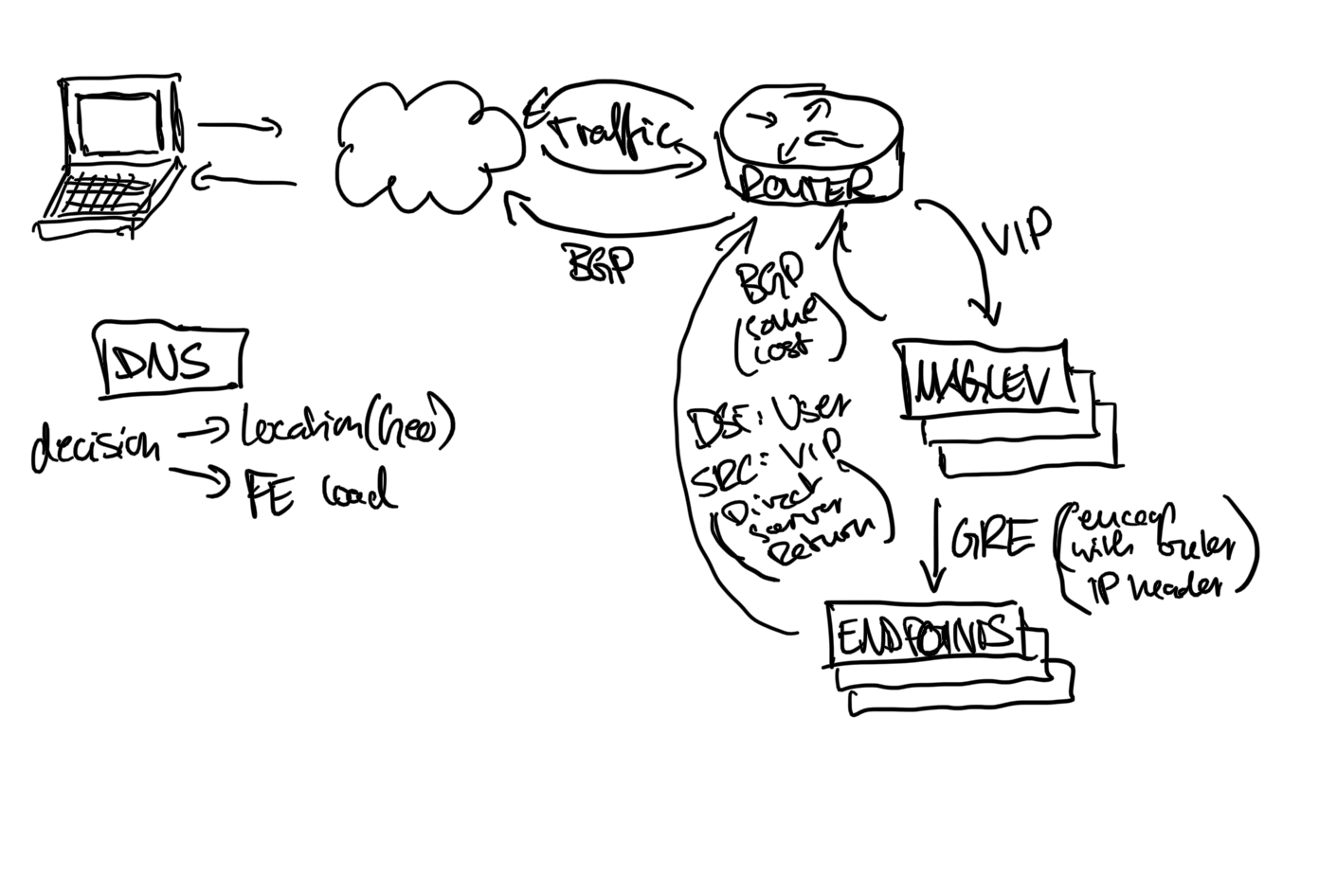

maglev architecture overview

  • larger clusters have hardware encapsulators between maglev and router so they don’t need to be in the same L2 domain
  • Linux kernel is circumvented for fast packet processing
  • steering module consistent hashes between rx queues with packet rewrites threads
  • rewrites checks for VIP match, connection table
  • 5 tuple host over round robin for stability of connections (rr is fallback)
  • 813 kpps for 1500 bytes IP packets
  • processing speed of 9.06 Mpps for smaller packets

Fast Packet Processing

  • userspace app circumventing kernel
  • shared packet pool with NIC
  • ring queue of pointers pointing to packets in pool
  • NIC and forwarder advance pointers in ring (no copying)
  • backend selection consistency across Maglev machines is accomplished by consistent hashing based on backend names (simplified algorithm!!)
  • kernel bypass 5x performance
  • handling fragments via special backend pool containing all Maglevs
  • special packet tracer packets that trigger Maglev to send debug info to SRC
  • steering module bottleneck before moving to 40Gbps
  • 5 packet threads saturate 10Gbps NIC

Questions

  • read up on ECMP
  • study Maglev hashing details
